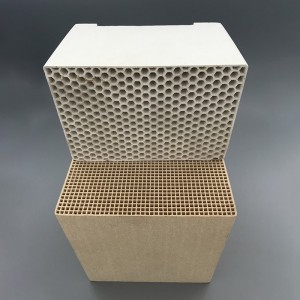

Thermal Storage Honeycomb Ceramic for RTO/RCO

Short Description:

Honeycomb ceramics are a new kind of industrial ceramic product developed in recent years. They have a large surface area, higher air ventrate, good heat functions, stable chemical properties etc. At present, ceramic honeycombs are being used to purify industrial waste gas, automobile emissions, eliminate noise, deal with waste water, to dry air, incineration, used in the manufacture of infrared ray instruments, to filter metal liquids etc. All ceramic honeycombs can be produced in conformance with customer requests.

Material : Cordierite, mullite, alumina, corundum, etc

Size: 150*150*300mm, 150*150*150mm, 100*100*100mm,100*100*150mm etc

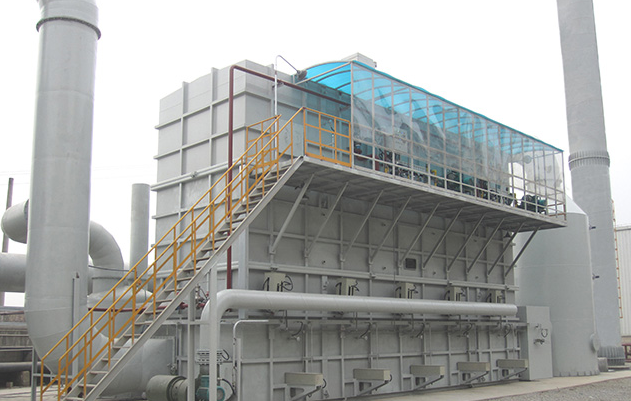

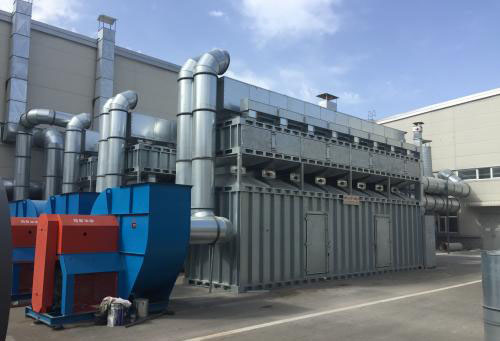

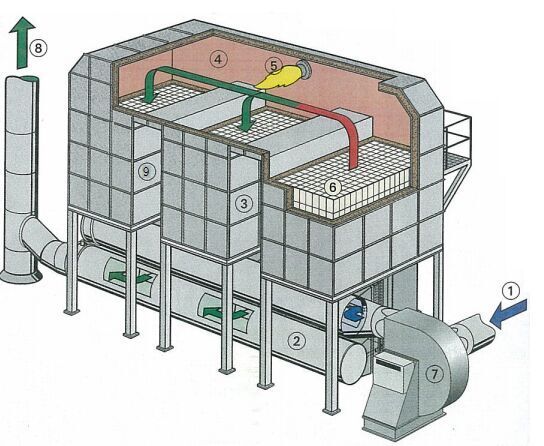

Application : RTO/ RCO system

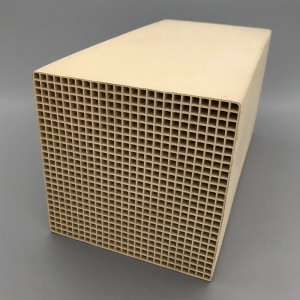

Hole shape: Square, Hexagon

Send email to us

Product Detail

Product Tags

High Temperature Air Combustion (HTAC) is a new type combustion technology with enormous energy-conservation and environmental protection. The Thermal storage honeycomb ceramics are widely used in the various heating furnaces, hot blast furnaces, heat treatment furnace, cracking furnaces, roaster, melting furnace, soaking pit furnaces, oil gas boiler, etc in the steel, machinery, building materials, petrochemical, colored metal smelting and etc industries.

The corundum/mullite and cordierite/mullite complex thermal storage honeycomb ceramic developed by our company has the following notable characters: perfect high temperature resistance, anticorrosion, perfect thermal shock stability, high mechanical strength, large thermal storage capacity, advantaging heat conduction property, energy conserving result and service life are improved greatly. At present, our products have already been approved by numerous iron and steel enterprise and exported to Japan, South Korea and Europe and America market.

Physical Prosperities

Index	Metric Unit	Value	British Unit	Value
Material Density	g/cm3	2.3-2.6	Lb/ft3	151
Average Linear Expansion (20-800)	10-6/k-1	<2.5
Special Heat Capacity	KJ/Kg	900-1200
Heat Conductivity	W/MK	1.8-3.0
Maximum Application Temp.	C	1350		2450
Acid resist strength wt.loss	%	<4
Water Absorption	%	<5

The Size and Specification

(mm)	Quantity of channels	Wall thickness(mm)	Channel Width(mm)	Surface area(m2/m3)	Void section (%)	Packaging density(kg/m3)	Weight per piece(kg)
150150300	25*25	1.0	4.96	580	68	696	4.7
150150300	40*40	0.7	3.03	891	65	814	5.5
150150300	50*50	0.6	2.39	1090	63	903	6.1
150150300	60*60	0.5	1.99	1303	63	932	6.3
150100100	40*40	1	2.5	784	49	799	1.2
150100100	33*33	1.1	3.0	691	52	750	1.13
150100100	20*20	2.0	5.0	392	49	692	1.04
100100100	40*40	1.0	2.5	784	49	810	0.81
100100100	33*33	1.1	3.0	691	52	750	0.75
100100100	20*20	2.0	5.0	392	49	680	0.68
