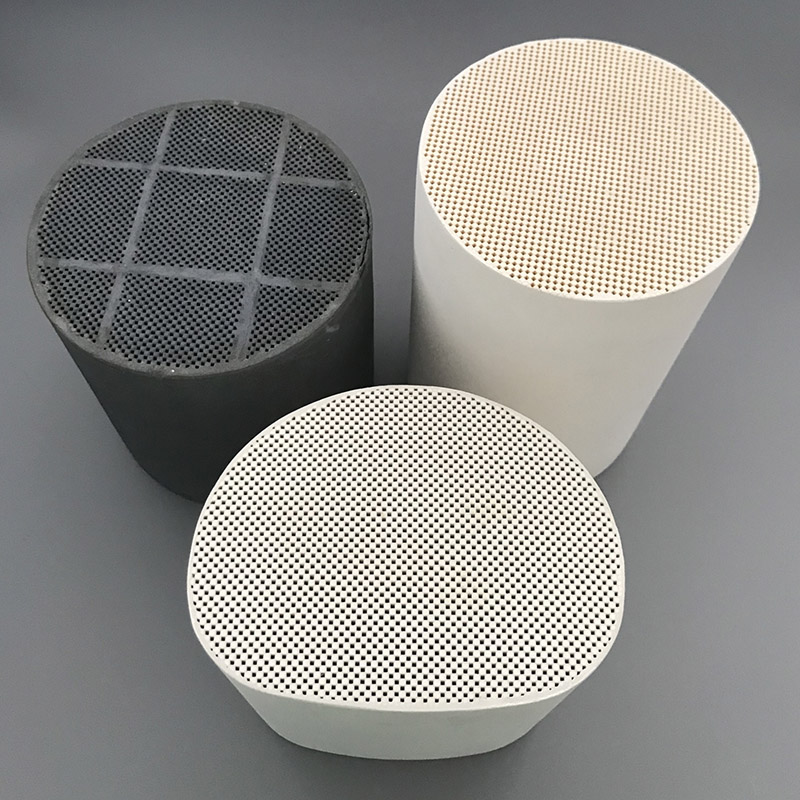

If the DPF is coated with precious-metal (such as Pt, Pd and Rh), black smoke with carbon particulate from diesel engine pass through a special tube and enter the filter. The carbon smoke particulate is absorbed to the filter made of metallic fiber felt, when passing the inner dense set and bag-style filter. When particulate absorption reaches some degree, the tail burner would be ignited to burn automatically. In this case, the particulate absorbed been burned out and turned into nontoxic CO2 then discharge. The full device is designed as double room structure, and filtration and recycle are going in different areas, making them non-disturbed. The system can work automatically whatever working condition the engine in. especially made honeycomb ceramic particulate filter, acts as capturing device to the particulate to some extent.

◎Low pressure drop;

◎Low thermal expansion coefficient;

◎High porosity ratio, pore diameter distribution uniform;

◎High temperature resistance, Good resistance to chemical corrosion;

◎Good heat shock resistance and heat vibration resistance;

◎High particulate trapping efficiency, adaptability to various modes of production.

100 holes / inch 2 ~ 200 holes / inch 2 Typical product specifications

NO.	Section size (mm)	Cross-sectional area (mm2)	Section shape	Height (mm)
1	118.4	11010		Production of various high degree of product according to customer requirements
2	127	12667
3	144	16286
4	150	17671
5	190	28352
6	228	40828
7	240	45238
8	267	55990
9	286	64242
10	305	73061
11	330	85529
12	191.8×95.8
13	190×134
14	145×118
15	154.9×127
16	207×101.4
17	188×103
18	144.8×81.3
